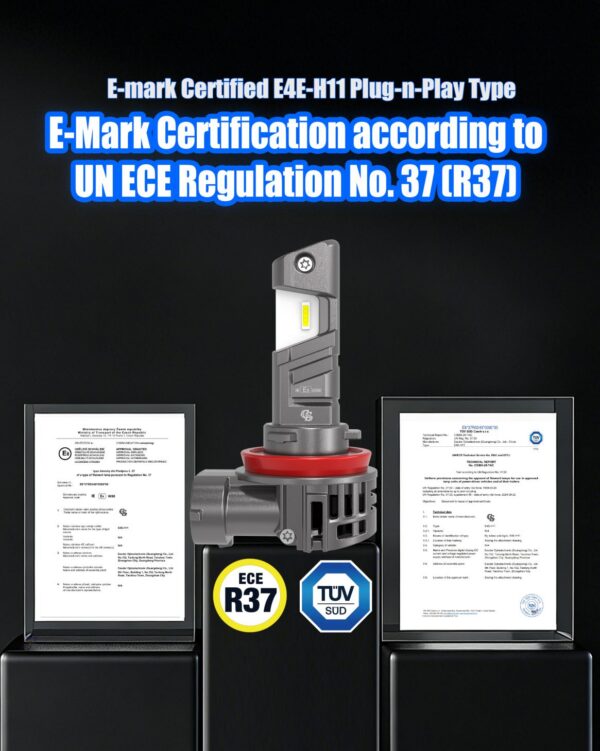

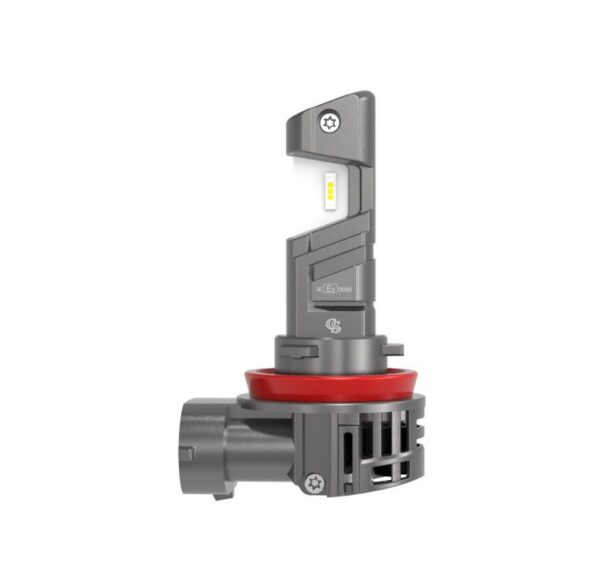

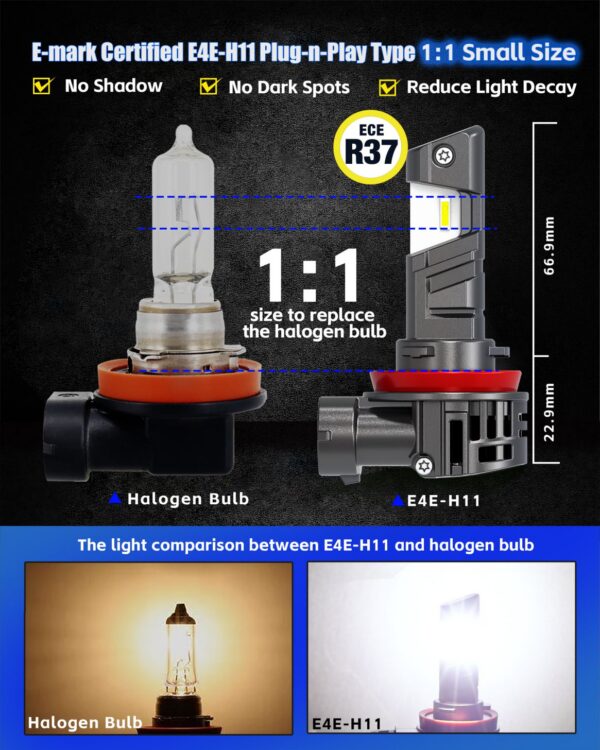

E4E-H11

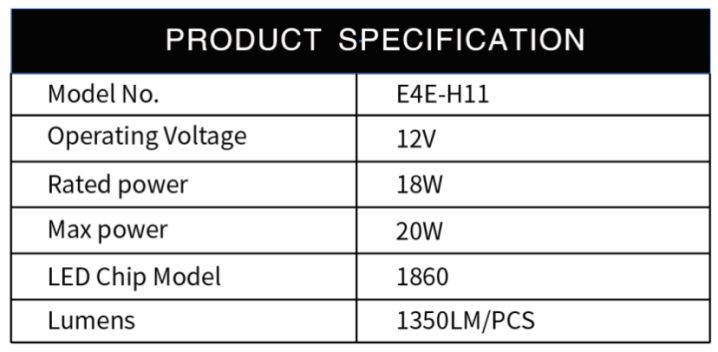

Product description:
1:1 HALOGEN LAMP REPLACEMENT
HIGH-PERFORMANCE LED
REPLACEMENT LIGHT SOURCE

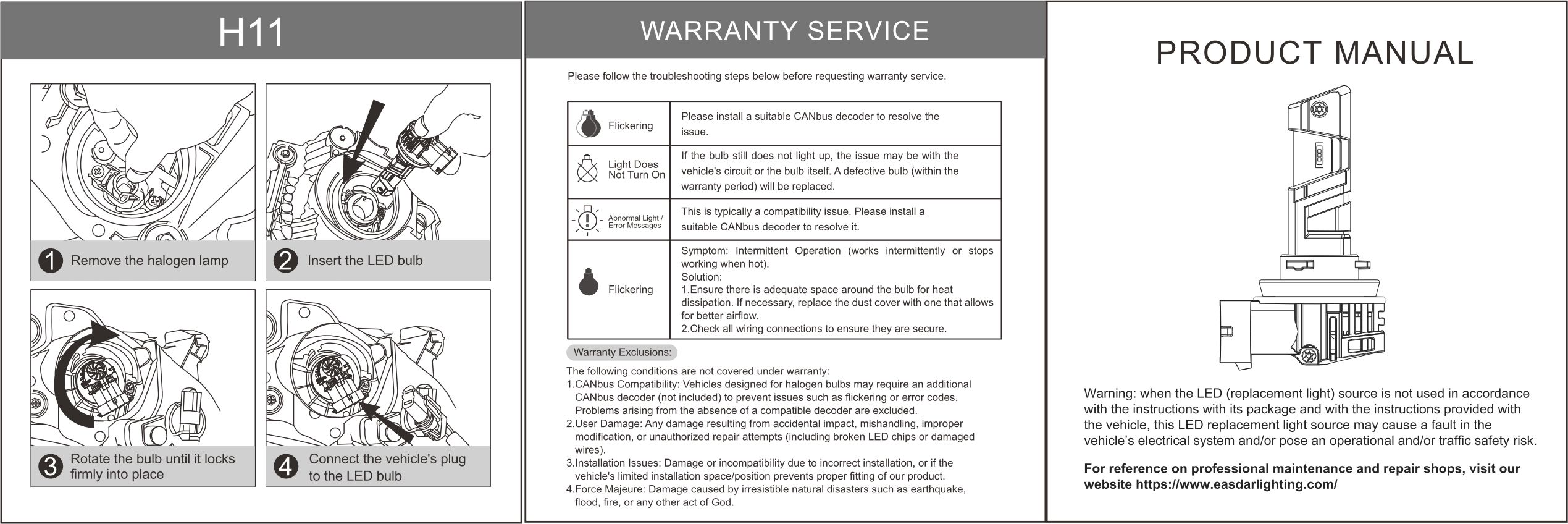

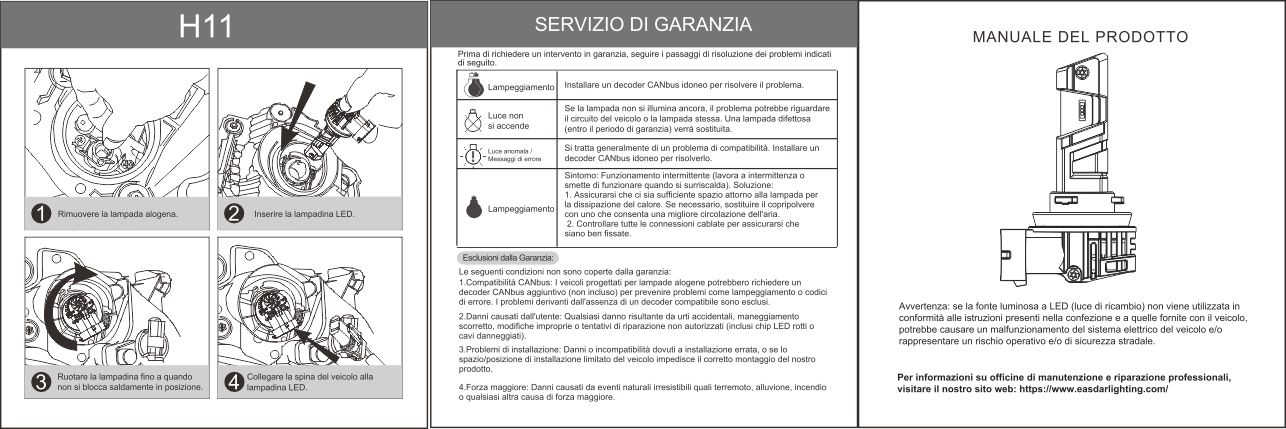

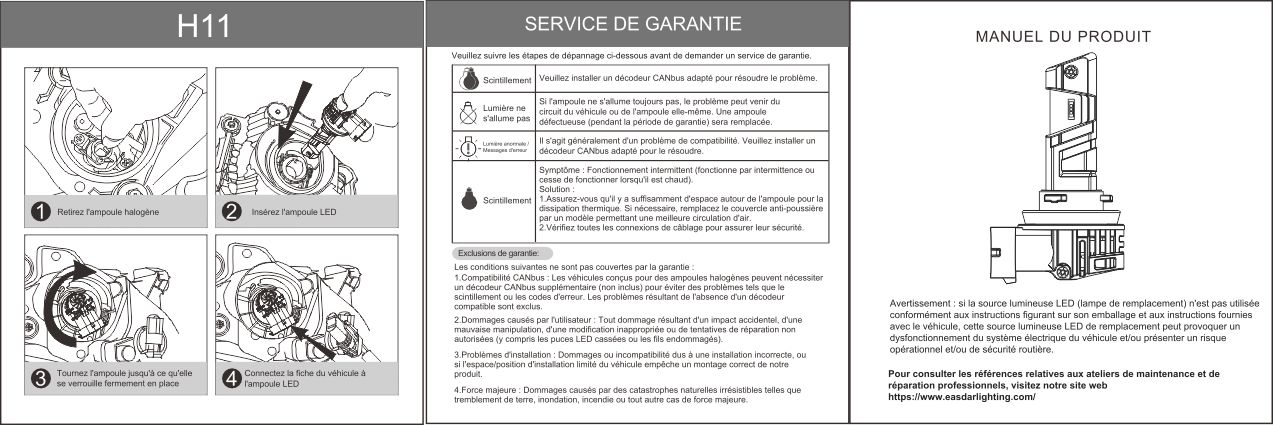

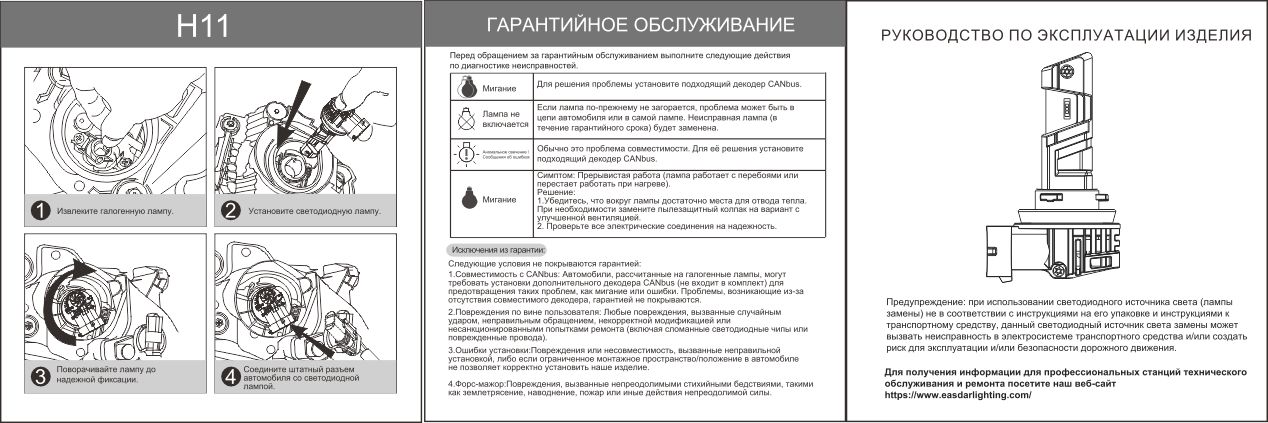

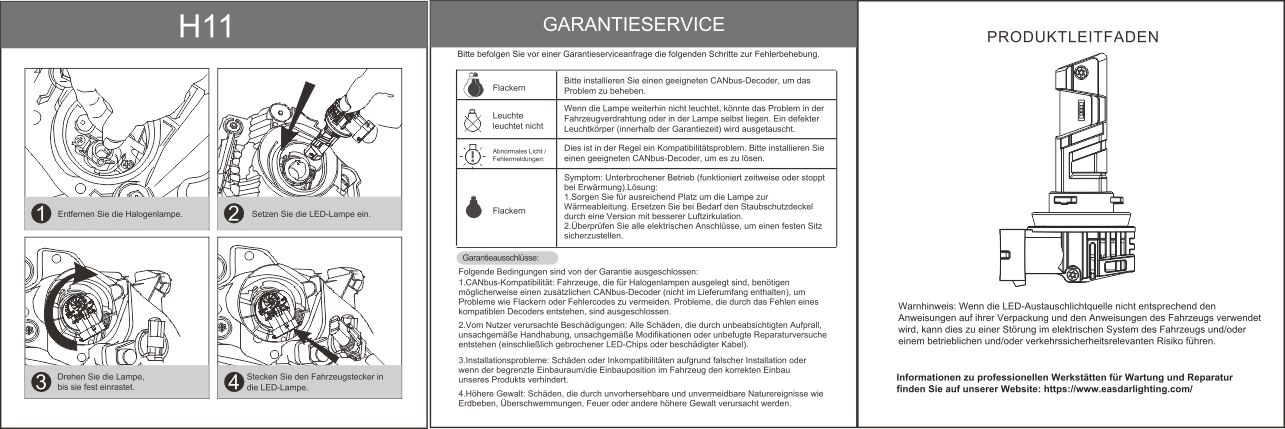

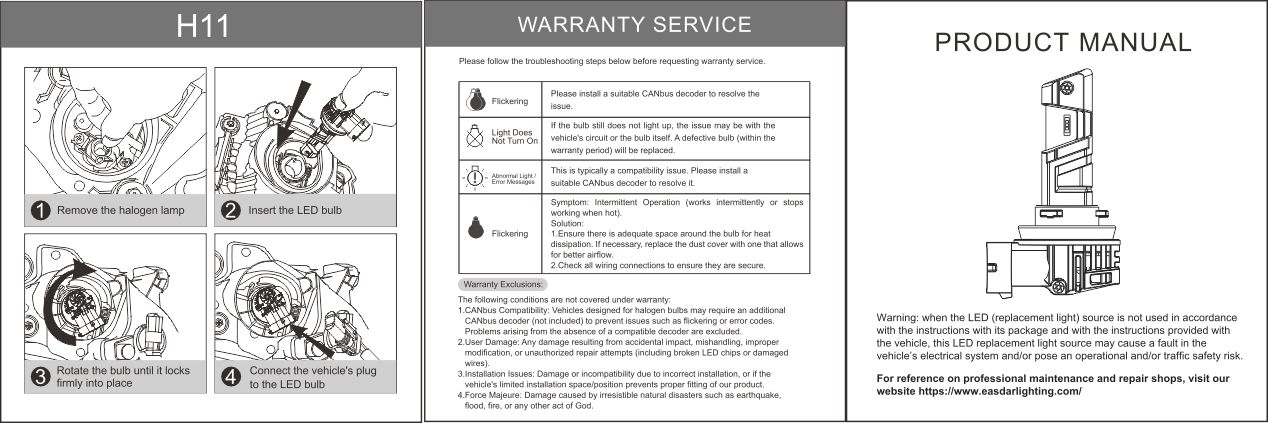

Installation instructions:
1.Remove the halogen lamp
2.Insert the LED bulb
3.Rotate the bulb until it locks firmly into place
4.Connect the vehicle’s plug to the LED bulb

Warning: when the LED (replacement light) source is not used in accordance with the instructions with
its package and with the instructions provided with the vehicle, this LED replacement light source may cause a
fault in the vehicle’s electrical system and/or pose an operational and/or traffic safety risk.

WARRANTY SERVICE
1.Please follow the troubleshooting steps below before requesting warranty service.
2.Flickering：Please install a suitable CANbus decoder to resolve the issue.
3.Light Does Not Turn On：If the bulb still does not light up, the issue may be with the vehicle’s
circuit or the bulb itself. A defective bulb (within the warranty period) will be replaced.
4.Abnormal Light / Error Messages：This is typically a compatibility issue. Please install a suitable
CANbus decoder to resolve it.
5.Flickering：Symptom: Intermittent Operation (works intermittently or stops working when hot).Solution:
1)Ensure there is adequate space around the bulb for heat dissipation. If necessary, replace the dust cover
with one that allows for better airflow.
2)Check all wiring connections to ensure they are secure.
